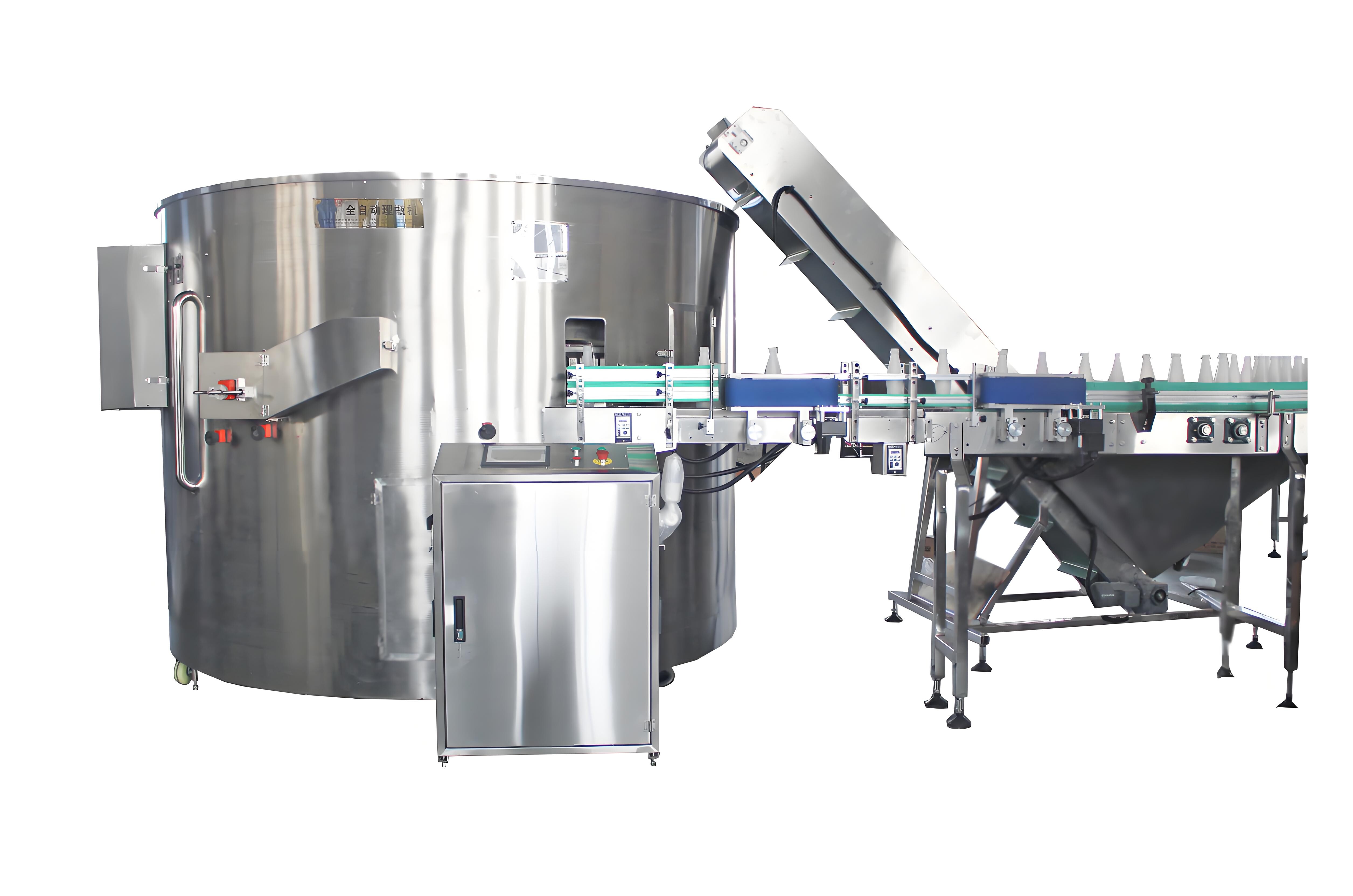

Automatic bottle sorting machine
Contact Us

Product Details

specifications：

·Number of job positions: 21

·Rated production capacity: 22000 bottles/hour

·Maximum production speed: 25000 bottles/hour

·Gas source pressure: 0.7MPa

·Gas consumption: 2M3/min

·Suitable bottle type: diameter 50-96, bottle height 165-310

·Main motor power: 3KW

·Elevator power: 0.75KW

·Main body dimensions: Φ 3020 × 2650 (diameter × height)

·Whole machine weight: 4600Kg"


The main motor reducer adopts a torque limiting mechanism to prevent damage to the machine in case of malfunction.
Adopting a two-stage recommendation bottle sorting mechanism to ensure that each bottle dropping station has bottles and improve bottle dispensing efficiency.
Using a hanging bottle mouth conveying duct to prevent bottles from tipping over during transportation.
There is a mechanism for removing damaged bottles.
Equipped with a bottle jam detector, it automatically shuts down and alarms when a bottle gets stuck.
There is a bottle free detector installed to send a working signal to the elevator, which will automatically replenish the bottles.
There is a photoelectric switch installed on the bottle conveying duct to control the start and stop of the bottle sorting machine.
The bottle sorting machine is equipped with an oil nozzle, which can easily add lubricating oil to gears, bearings, and cams.
There are maintenance doors and mold replacement doors available.

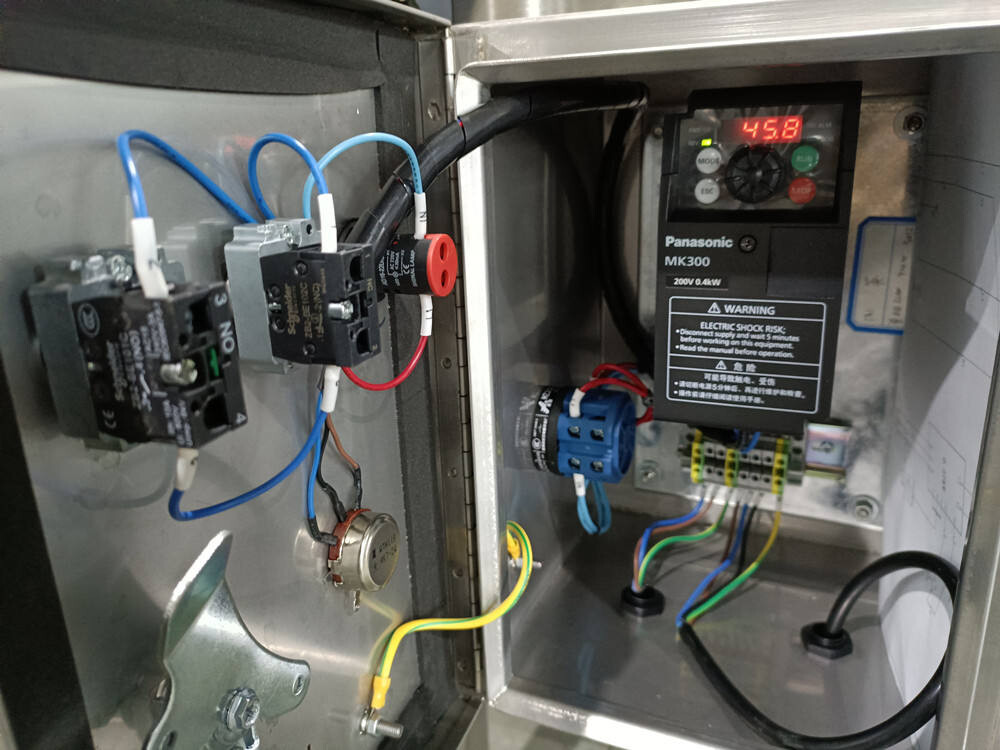

The main electrical components (frequency converter, PLC, photoelectric switch, relay) are all made of MITSUBISHI, OMRON, SIEMENS and other components. The pneumatic system adopts imported products."
